Product Name: One-Line Laser Light

• This product is also commonly referred to as the Line Laser, One-Meter Line Light, or One-Meter Line Laser Light. All these names refer to the same device, named for its ability to project a sharp, straight “one-line” beam.

Product Overview

• The One-Line Laser Light is a high-performance lighting solution designed for applications requiring exceptionally bright and clear linear illumination. Utilizing pure laser technology, it delivers a precision line that outperforms standard LED alternatives in both focus and intensity.

I. Core Features

• Pure Laser Source: Employs a high-brightness single-point laser diode (not LED), resulting in a concentrated, ultra-bright beam that produces an exceptionally sharp and well-defined one-line projection.

• Multiple Power Options: Available in 10W, 20W, and 30W power specifications. Brightness increases progressively with power, with the 30W model offering the highest intensity to meet diverse application needs.

• Rich Color Selection: Standard models are available in Red, Green, and Blue. Among these, the Green light provides the highest visual brightness at equivalent power levels.

II. Physical & Safety Specifications

• Laser Safety Class: Class IIIB (3B). Adherence to standard laser safety practices is required during operation.

• Housing Material: Constructed with a durable aluminum alloy housing, which effectively dissipates heat and ensures long-term stability.

• Water Resistance:

  • Standard Version: Not waterproof, suitable for indoor, dry environments.

  • Custom Version: An IP54-rated waterproof version is available upon request. Please inquire about lead times for this customization.

III. Customization & Important Notes

• Waterproof Customization: For the IP54 waterproof option, please contact us to discuss lead time arrangements.

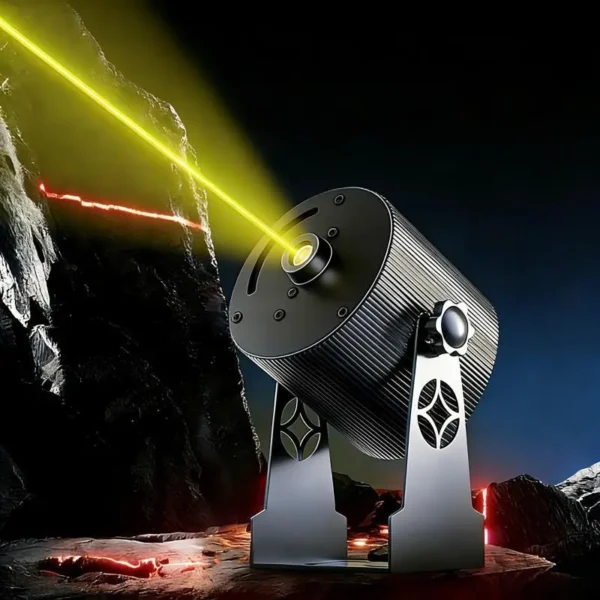

• Yellow Light Customization: Yellow light is a non-standard color and requires special ordering. Important: The performance (brightness and purity) of yellow laser light is significantly lower compared to Red, Green, or Blue. Due to the specialized nature of this customization, this option is non-refundable. Please confirm requirements thoroughly before ordering.

• Dynamic Effects: This product does not support dynamic effects such as flashing or strobe patterns.

IV. Recommended Applications

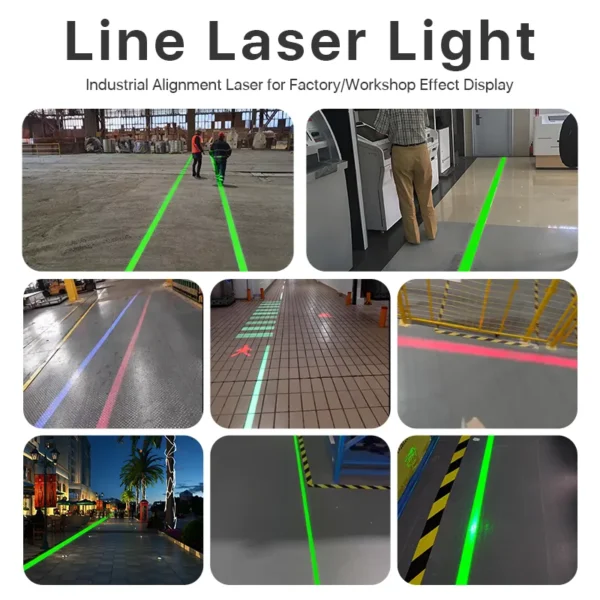

• Ideal for applications demanding high-brightness linear lighting, including stage setting, exhibition displays, architectural outlining, and industrial alignment.

• Important Note: Due to fundamental differences in light generation, laser and LED technologies produce inherently different effects. Please refrain from directly comparing this laser product with standard LED linear lights.

Product Specification Table
