Comprehensive Analysis of Projector Ingress Protection (IP) Codes: From IP54 to IP67 – How to Choose for Outdoor Projects?
When installing an outdoor projector light for architectural lighting, advertising projection, landscape illumination, or cultural tourism projects, one of the most important specifications to consider is the IP rating (Ingress Protection Rating).
A proper IP rating ensures that your projector light can withstand rain, dust, humidity, and other environmental challenges while maintaining stable long-term performance.
What Is an IP Rating?
The IP rating is an international standard defined by IEC 60529, used to measure how well an enclosure protects against dust and water.
An IP rating consists of two numbers:
- First digit (0-6): Dust protection
- Second digit (0-9): Water protection
For outdoor projector lights, the most common ratings are IP54, IP65, IP66, and IP67.
Dust Protection
- IP5X: Dust protected. Limited dust may enter but will not affect operation.
- IP6X: Completely dustproof.
All Aladdin outdoor projector lights feature IP6X dust protection, preventing dust from entering the fixture.
Water Protection
- IPX4: Protection against splashing water.
- IPX5: Protection against low-pressure water jets.
- IPX6: Protection against powerful water jets.
- IPX7: Protection against temporary immersion in water up to 1 meter for 30 minutes.
- IPX8: Protection for continuous underwater use.
Higher IP ratings are not always necessary. Choosing the right protection level for the installation environment is often more cost-effective than selecting the highest available rating.
IP54 vs IP65 vs IP67 Projector Lights
IP54 – Indoor & Semi-Outdoor Applications
It can protects against limited dust ingress and water splashes from any direction.
Recommended for:
- Shopping malls
- Exhibition halls
- Museums
- Indoor decorative projection
- Covered outdoor areas
For gobo projectors that require frequent gobo replacement, IP54 can sometimes be more practical than a fully sealed enclosure because limited air exchange helps reduce internal condensation.
IP65 – The Standard for Outdoor Projector Lights
IP65 provides:
- Complete dust protection
- Resistance to powerful water jets and heavy rain
This is the most commonly used protection level for outdoor projection lighting.
Suitable for:
- Building facade projection
- Outdoor advertising projection
- Landscape lighting
- Theme parks
- Tourism attractions
- Outdoor events
For most outdoor applications, IP65 projector lights provide the best balance between performance, durability, and cost.
IP66 – For Harsh Weather Conditions
IP66 offers a higher level of water resistance against strong water jets and severe weather.
Recommended for:
- Coastal environments
- Mountain viewpoints
- Areas with strong winds and driving rain
- Locations near fountains and mist systems
IP66 is suitable for almost all demanding outdoor projection installations.
IP67 – Maximum Protection for Outdoor Installations
IP67 provides:
- Complete dust protection
- Temporary immersion protection up to 1 meter for 30 minutes
Recommended for:
- Flood-prone areas
- Ground-mounted installations
- Water feature projects
- Coastal boardwalks
- Wet zones in theme parks
IP67 is not designed for permanent underwater use, but it offers additional protection against accidental flooding and standing water.
If you’re unsure which waterproof projector light to choose, IP67 is often the safest option.
Frequently Asked Questions
Are Outdoor Projector Lights Waterproof?
Yes. Outdoor projector lights rated IP65 or higher can safely withstand heavy rain and harsh weather conditions.
Can Projector Lights Operate in Snow?
Yes. Snow eventually melts into water, and an IP65 or IP67 projector light prevents moisture from entering the fixture.
For extremely cold climates, always check the operating temperature specification of the product.
Does an IP Rating Protect Against Corrosion?
No.
IP ratings only measure resistance to dust and water ingress.
For coastal areas or chemical plants, choose projector lights with:
- Marine-grade aluminum housing
- Anti-corrosion coatings
- UV-resistant surface treatment
IP66 or IP67 is recommended for these environments.

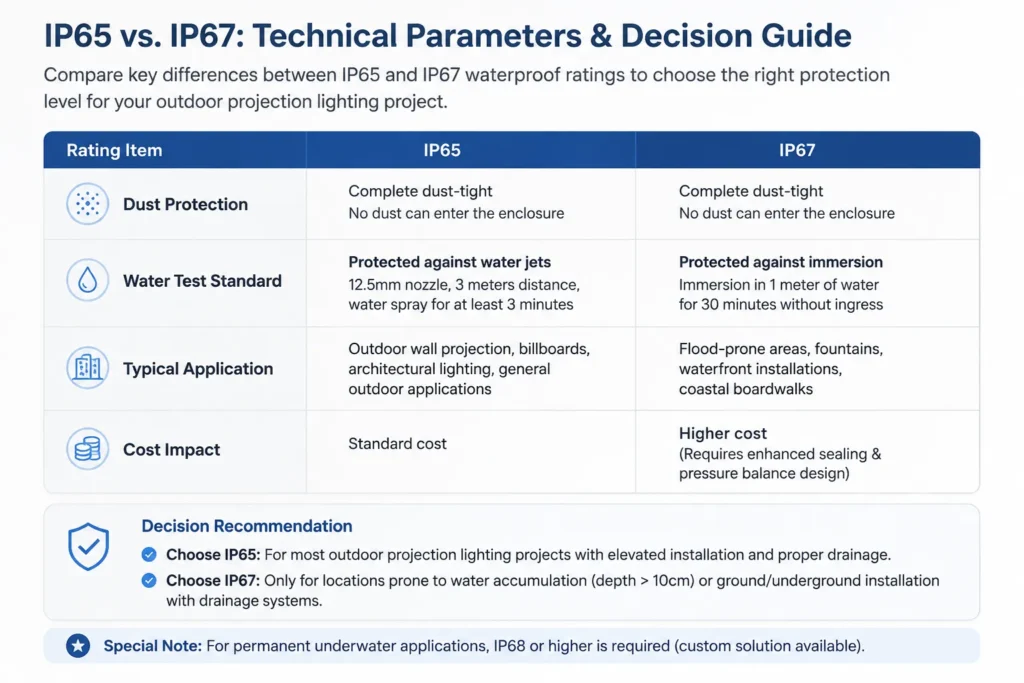

IP65 vs IP67: Which One Should You Choose?
Our Recommendation
Choose IP65 if:
- The fixture is mounted above ground.
- Water accumulation is unlikely.
- Standard outdoor weather protection is sufficient.
Choose IP67 if:
- The installation area may experience flooding.
- The fixture is mounted close to the ground.
- Maximum environmental protection is required.
Buying Tips for Outdoor Projector Lights
Before purchasing an outdoor projector light, make sure to:
Verify the IP rating is clearly specified.
Confirm the product is designed for outdoor use.
Check for waterproof breather valves to reduce internal condensation.
Avoid over-specifying IP69K unless high-pressure industrial cleaning is required.
Conclusion
For most outdoor projection lighting projects, IP65 is the industry-standard choice, offering reliable protection against dust, rain, and everyday outdoor conditions.
For installations exposed to standing water or occasional flooding, IP67 provides additional protection and peace of mind.
By selecting the appropriate IP rating, you can ensure long-term reliability, lower maintenance costs, and better performance for your outdoor projector lighting system.
